Water simulation in GLSL

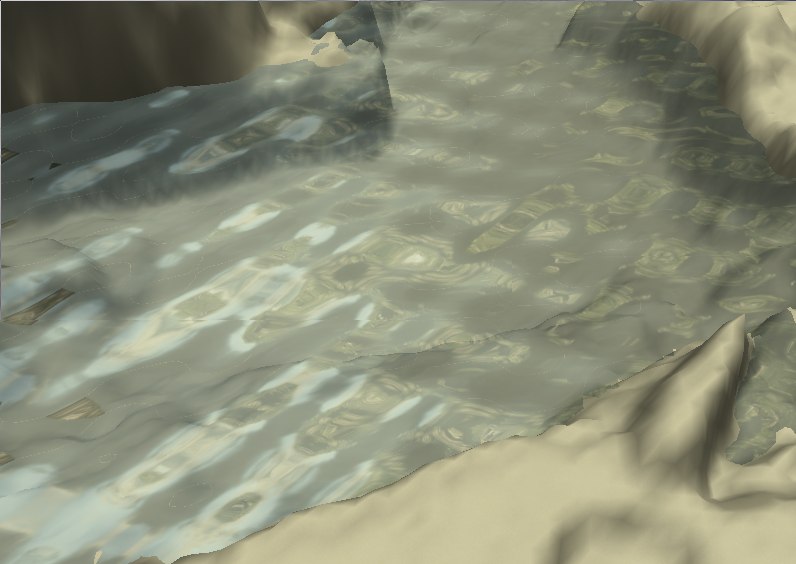

Over the weekend, I put together a very basic water simulation with GLSL (the shader language in OpenGL). I'm pretty happy with the results so far. It's amazing how much you can get out of such a small amount of code.

Step one in generating the water you see above is building a mesh for it. I started with a heightmap, set the "sea level" elevation, and copied everything below that. So the vertices of the mesh actually store depth for the water at every point. I don't use this information right now, but it could probably be used to make smaller or slower waves near the coast for more realism.

The mesh gets drawn with a vertex shader, which essentially applies a sum of sine waves to the surface. The height at each point is a function of XY position and time. The number of waves and the amplitude, wavelength, speed, and direction of each wave are configurable parameters.

const float pi = 3.14159;
uniform float waterHeight;
uniform float time;
uniform int numWaves;
uniform float amplitude[8];
uniform float wavelength[8];
uniform float speed[8];
uniform vec2 direction[8];

float wave(int i, float x, float y) {
    float frequency = 2*pi/wavelength[i];
    float phase = speed[i] * frequency;
    float theta = dot(direction[i], vec2(x, y));
    return amplitude[i] * sin(theta * frequency + time * phase);
}

float waveHeight(float x, float y) {
    float height = 0.0;
    for (int i = 0; i < numWaves; ++i)
        height += wave(i, x, y);
    return height;
}

The beautiful thing about modelling wave height as a fixed function like this is that you can generate normal vectors with some simple calculus. Below, I have two functions which take the partial derivatives with respect to X and Y, and another which sums them to produce a normal.

float dWavedx(int i, float x, float y) {
    float frequency = 2*pi/wavelength[i];
    float phase = speed[i] * frequency;
    float theta = dot(direction[i], vec2(x, y));
    float A = amplitude[i] * direction[i].x * frequency;
    return A * cos(theta * frequency + time * phase);
}

float dWavedy(int i, float x, float y) {
    float frequency = 2*pi/wavelength[i];
    float phase = speed[i] * frequency;
    float theta = dot(direction[i], vec2(x, y));
    float A = amplitude[i] * direction[i].y * frequency;
    return A * cos(theta * frequency + time * phase);
}

vec3 waveNormal(float x, float y) {
    float dx = 0.0;
    float dy = 0.0;
    for (int i = 0; i < numWaves; ++i) {
        dx += dWavedx(i, x, y);
        dy += dWavedy(i, x, y);
    }
    vec3 n = vec3(-dx, -dy, 1.0);
    return normalize(n);
}

The normal vector is left in world space so it can be used for cubemap texture coordinates in the fragment shader. I just reused my skybox textures as a cubemap. That's how I got the reflection you see. I set the alpha value for the water to 0.5 so it's fairly transparent.

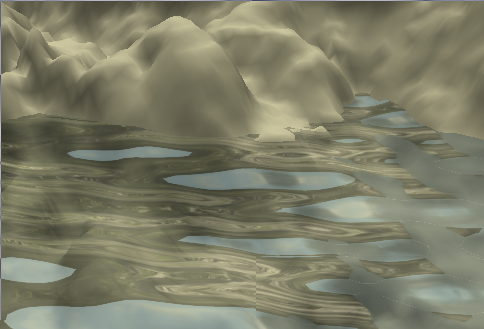

Here's another screenshot:

Exercises left for the reader (and me, next weekend):

• Change transparency based on the angle between the normal vector and the eye vector
• Create a dynamic bump map for high frequency waves, using the same techniques
• Reflection of the environment, not just the skybox
• Refraction so the terrain under the water looks "wavy"

Download the full source code
